Complete ECM package ready for install for 1987 thru 1995 GM TBI cars and trucks

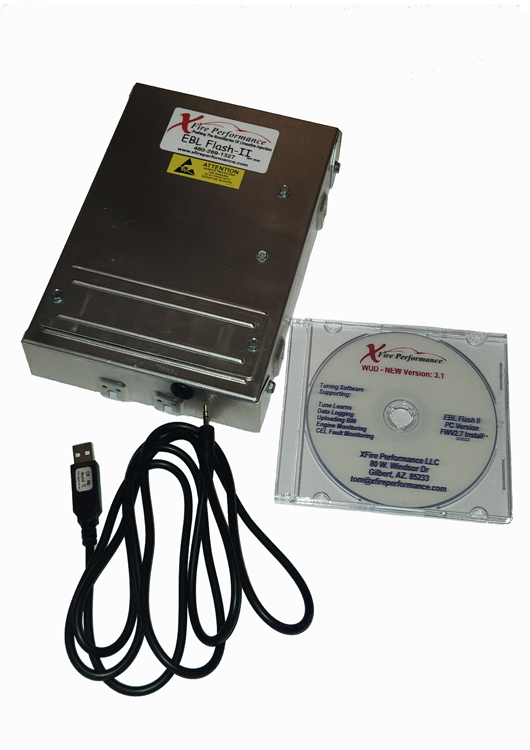

Is your ECM dead and you have been looking for a simple solution to your non running 1987 thru 1995 GM car or truck and can’t find any replacement ECMs anywhere? Look no further…This is the same EBL Flash II that originally came from Dynamic EFI with an USB cable attached for your laptop PC. We accquired Dynamic EFI and we are now going to stock this item to make it easier on our customers. TBI ECMs have pin type connectors vs the CFI edge card type connector.

This will be a 100% plug-n-play type package. The package comes with a CD/USB drive with all the bin files you might need to use as a starter bin and datalog from there. You can load it to your PC desktop or laptop. You will will be able to change the tune to fit your needs using TunerPro RT. The real beauty of this EBL ECM is that if you decide at a later date to add power enhancements to your TBI engine like, heads, cam, headers, larger TBs and larger injectors, NOS etc., you can. You can also easily tune the engine for more performance, building off of the stock tune you created as a great base starter bin starting point.

ADVANTAGES AND HIGHLIGHTS OF USING THE EBL ECM:

There is no cutting or splicing of any kind on your car/truck GM harness with this unit. Just remove your bad original stock ECM and plug the EBL ECM in, turn the key to ON and GO start datalogging and tuning!

• Your engine will run better.

• High speed data logging (if desired).

• 100% fully user programmable using a PC based laptop with a USB port. Windows 10/11 highly recommended, but not essential.

• ECM software is enhanced with larger tables and added functionality.

• The What's Up Display (WUD) software provides a Windows based graphical interface display along with analysis screens.

• Documented calibration parameters & tables for the new ECM code along with ECU and XDF definition files are provided. (used to edit the calibration tables if desired)

• Hardware is industrial temperature specified and conformal coated for reliability and long life.

• Also included on the EBL board, are eight analog input channels and two ground terminals. The data from these inputs are included in real time with the ECM data. These analog inputs can be used for data logging wide band O2 sensors, fuel pressure, and any other 0 to 5V linear device desired like, accelerometer, oil pressure, oil temperature, suspension travel, and more...

**OUT OF COUNTRY PURCHASES

If you are outside the USA and want to purchase an EBL ECM or any other item on this site, please contact me via the Contact page and an invoice will be sent. This site is NOT set up to handle foreign country purchases directly. Also, I refuse to send to some country’s that I have been scammed by, the list is on here in the Blog. Sorry if you happen to live in one of those country’s, but NO EXCEPTIONS.

NOTE: If for any reason, you do not like or want the EBL ECM, there is a 15% Restocking Fee on the EBL ECM after it has been returned to XFire Performance for a full inspection, testing and then deemed serviceable all at the customers expense. If there is damage to the unit, we will contact you directly. Thank you.

***XFire Performance Embedded Lockers End User Agreement
FOR OFF ROAD USE AND PRE-EMISSIONS VEHICLES ONLY
THE PURCHASER IS RESPONSIBLE FOR DETERMINING THE SUITABILITY
OF THE Embedded Lockers PRODUCT.

Limited Warranty & Liability

Hardware Warranty

XFire Performance warrants that the Embedded Lockers Board (the "Product") will be free from defects in materials and workmanship for a period of one (1) year from the date of receipt. This warranty extends solely to the original purchaser and is non-transferable.

Remedy
In the event of a verified defect covered under this Limited Warranty, XFire Performance and its suppliers' entire liability — and the purchaser's exclusive remedy — shall be limited to one of the following, at XFire Performance's discretion:

(a) A refund of the purchase price paid for the Product, if applicable; or

(b) Repair or replacement of the defective Product.

Software Disclaimer
XFire Performance makes no warranties, expressed or implied, regarding any software provided in connection with the Embedded Lockers product. All software is provided as-is.

Right to Modify Products
XFire Performance expressly reserves the right to make design changes, additions, or improvements to its products at any time without obligation to apply such changes to previously manufactured units.

Indemnification
By purchasing and/or installing the Embedded Lockers product, the buyer agrees to indemnify and hold harmless XFire Performance and its suppliers from any claim, action, loss, or demand arising out of or related to the buyer's installation or use of the Product.

Intellectual Property
The Embedded Lockers product is protected by copyright law, intellectual property laws, and international treaties. XFire Performance and/or its suppliers retain all title, copyright, and intellectual property rights in and to the Product. All rights reserved.

For warranty claims or inquiries, please contact XFire Performance directly.
